Nothing out there sounds this warm, fat and dirty. Bass Station II is Novation's pure analogue monosynth. Based on their classic Bass Station, then enhanced every area to make it even bigger, angrier and more versatile.
It has two tuneable oscillators, a sub-oscillator for enormous bass, plus noise and ring modulation. It also gives you two distinct analogue filter types: the classic multi-mode filter and a new acid filter, for a massive variation in sonic possibilities.



Specs:

Hardware & Controller Assignment:



25 note synth-action keyboard


Aftertouch can be assigned to modulate:



Filter frequency


LFO 1to Osc pitch


Osc 2 speed





Pitch wheel


Modulation wheel can be assigned to:



LFO 2 to filter frequency


LFO 1 to Osc pitch


Osc 2 pitch





Octave up/ down buttons


64 factory presets


64 slots for user patches (and patch dump facility for storing more)


Master volume dial

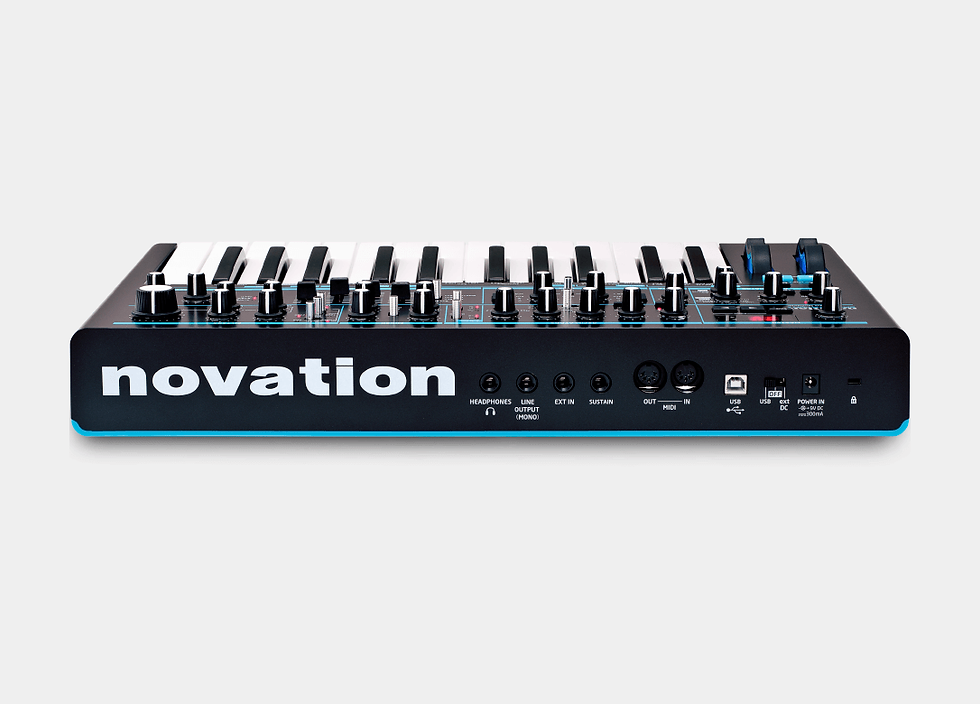

Inputs & Outputs:



USB 2 socket for MIDI (for connecting & powering Bass Station II via host computer)


Mono output on 1/4" TRS jack


Headphone output on 1/4" TRS jack


External input on 1/4" TRS jack


Sustain pedal input on 1/4" TS jack


MIDI IN / MIDI OUT ports on 5 pin din


DC power input


Switch between power off / DC powered / bus powered




Power:



USB bus powered


9V DC power supply included


Maximum power consumption 9V DC 300mA




Dimensions:



457mm (18”) width x 273mm (10.75”) depth x 76mm (3”) height




Compatibility:

macOS 10.12 Sierra - Yes

Mac OSX 10.11 - Yes

Mac OSX 10.10 - Yes

Mac OSX 10.9 - Yes

Windows 10 - Yes

Windows 8 - Yes



UPC: 815301000181
